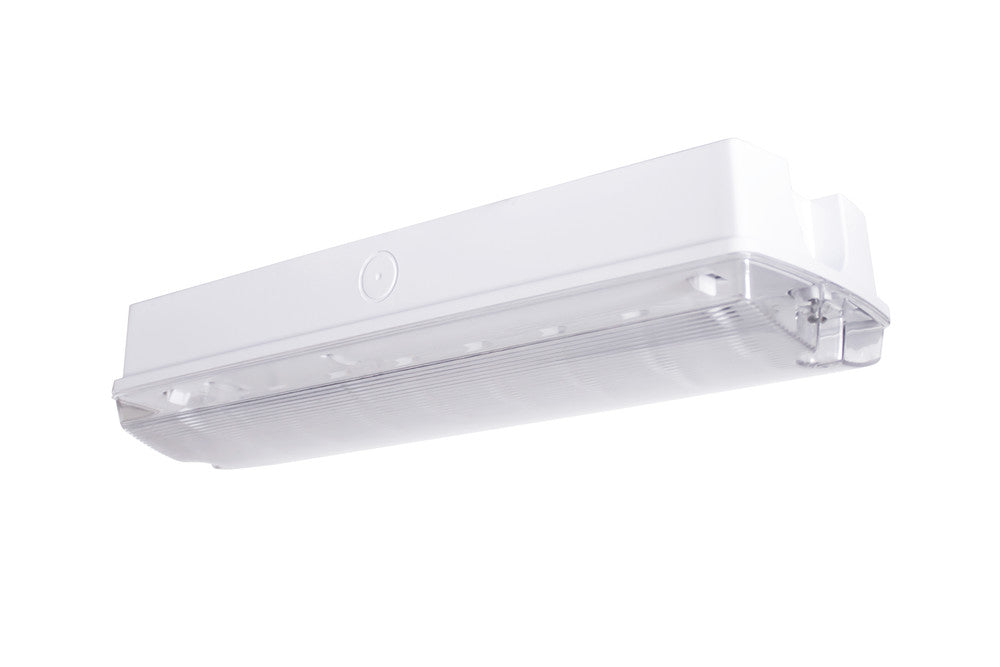

EMERGENCY BULKHEAD IP65 5W 3HR MAINTAINED OR NON-MAINTAINED MANUAL TEST INTEGRAL
The Integral Emergency Bulkhead can be configured for maintained or non-maintained operation providing at least 3 hours of emergency illumination in the event of a power cut.The Emergency Bulkhead is supplied with a hinged gear tray, push fit connectors and cable entry knock-outs (top, sides and back) for standard 20mm conduit (glands not supplied) and rear screw -mount locations.It is also comes with a self-adhesive emergency legend set.
3 Hour Emergency IlluminationHardwearing and weatherproofConfigurable maintained or non-maintainedPush-fit connector for easy installationSupplied with self-adhesive Legend Set
Barcode :5055788234968
Category :Emergency
Features :
Market Segment :Indoor and Outdoor Commercial, Industrial, Residential
Product Body Finish :Matt white
Product Type :Emergency Bulkhead
Range Name :Emergency Bulkhead
Warranty (Years) :3
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :120
Beam Angle (Range) :90 to 160
Colour Rendering Index (CRI) :80
Colour Temperature :
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :Surface mounted device (SMD)
Lifetime (hours) :30000
Lighting Method :
Lumens in Emergency mode (lm) :160
Lumens per meter (lm/m) :
Lumens Range :100 to 250 250 to 470
Luminous efficacy (lm/W) :
Luminous Flux in Lumens (lm) :250
Sensor / Overide :
Switching Cycles:15000
Amperage (mA) :50
Battery Configuration :Ni-Cd 1500mAh
Dimming :Non-Dimmable
Driver Included :Yes
Electric Current :AC
Emergency Battery Life (years) :3
Emergency Lumens (lm) :160
Emergency Type :Non-Maintained
Emergency Category :Bulkheads
PIR :
Input Current (A) :
Input Voltage (V) :220-240
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :3 to 5
Power Consumption (w) :5
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240
Wattage equivalent (W) :
Watts per metre :
EN :EN-60598
LVD Certified:Yes
New Energy Rating :
IK Rating (Impact Protection) :IK08
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP65
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :50
CE RoHS :Yes
Package Length (mm) :120
Package Width (mm) :85
Package Depth (mm) :365
Package Weight (g) :675
