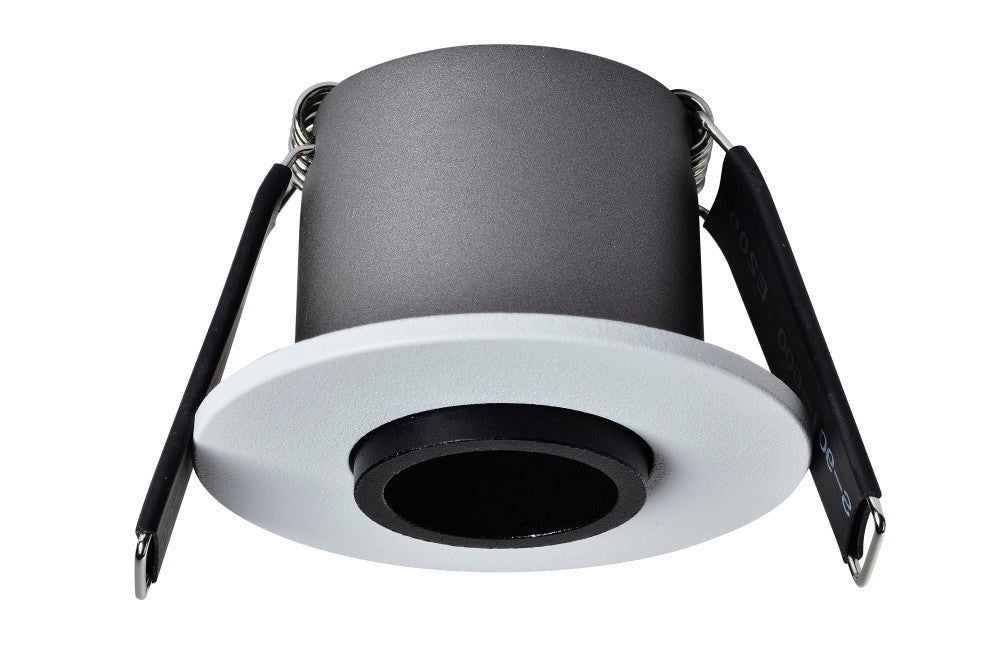

MINI DOWNLIGHT 35MM CUTOUT 3.3W 160LM 48LM/W 4000K 15 BEAM NON-DIM FINISH-A WHITE INTEGRAL
Lux Mini range offers extremely high CRI 95 designed to enrich the vibrancy of colours, a narrow beam of 15 Degrees enables the precise placement of accent lighting. This family of miniature downlights stands out as the ideal choice for home, retail, hospitality and artistic applications, helping to enhance the appearance of colours in fabrics, products and art. Complement with Lux Hi-Brite range for coherent multi-level lighting design.
High CRI 9535mm cut out160lm15 Degrees Beam4000KFixedNon-Dimmable
Barcode :5055788250401
Category :Downlights
Features :
Market Segment :Accent lighting
Product Body Finish :Matt white
Product Type :LED Downlights
Range Name :Lux Mini 35
Warranty (Years) :3
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :15
Beam Angle (Range) :10 to 20
Colour Rendering Index (CRI) :95
Colour Temperature :4000K - Cool White
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :Surface mounted device (SMD)
Lifetime (hours) :
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :100 to 250
Luminous efficacy (lm/W) :48
Luminous Flux in Lumens (lm) :160
Sensor / Overide :
Switching Cycles:15000
Amperage (mA) :
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :Yes
Electric Current :
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :3 to 5
Power Consumption (w) :3.3
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240VAC 50/60Hz
Wattage equivalent (W) :
Watts per metre :
EN :EN 60598, EN 55015, EN 61547, EN 61000
LVD Certified:Yes
New Energy Rating :G
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP20
Lowest Operating Temperature (°C) :
Maximum Operating Temperature (°C) :40
CE RoHS :Yes
Package Length (mm) :95
Package Width (mm) :90
Package Depth (mm) :55
Package Weight (g) :150
