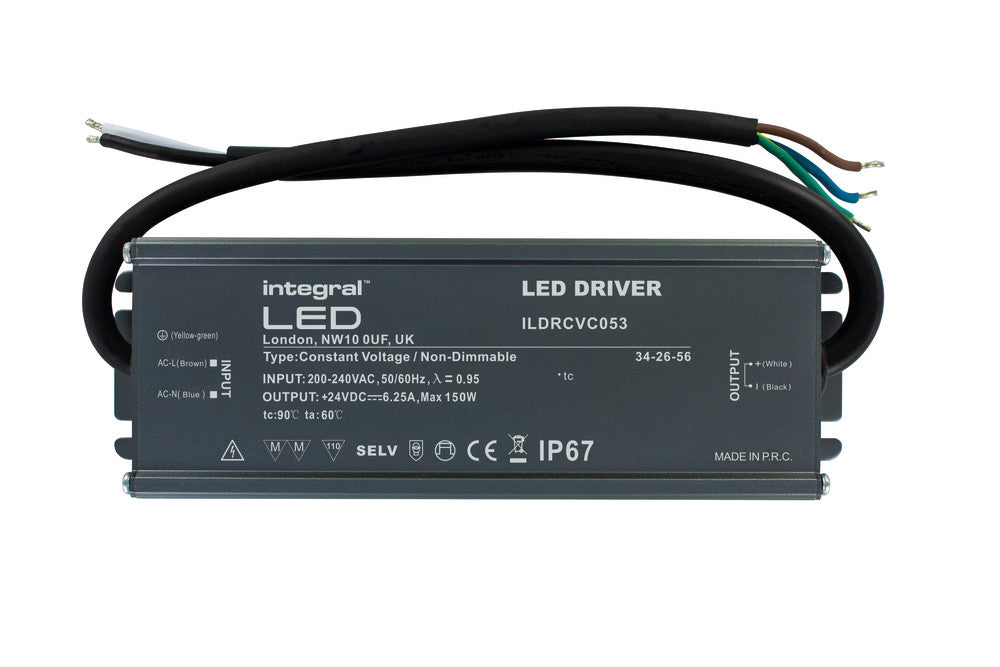

CONSTANT VOLTAGE DRIVER 150W 24VDC IP67 NON-DIMM 200-240V INPUT INTEGRAL
The Integral 150W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 24V constant voltage and up to 6.25A of output current for a 150W maximum output power. Integral LED drivers deliver high reliability and efficiency >= 85% and are fully compatible with 24V constant voltage LED lighting systems. This LED driver features an IP67 rated casing, making it suitable for outdoor installation with IP67 LED strip.
Input Voltage: 200-240VACOutput Power: 150WOutput: 24VDC Constant VoltageShort Circuit / Over Load / Over Heat Protection
Barcode :5055788238782
Category :Drivers
Features :
Market Segment :Commercial outdoor , Residential outdoor
Product Body Finish :
Product Type :Constant Voltage
Range Name :Non-Dimmable
Warranty (Years) :3
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :
Beam Angle (Range) :
Colour Rendering Index (CRI) :
Colour Temperature :
Colour Temperature Name :
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :
LED Type :
Lifetime (hours) :
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :1 to 100
Luminous efficacy (lm/W) :
Luminous Flux in Lumens (lm) :
Sensor / Overide :
Switching Cycles:
Amperage (mA) :
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :
Electric Current :
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :1
Input Voltage (V) :200-240
Insulation Guard :
Output Current (mA) :6250
Output Voltage (V) :
Power Consumption (Range) :150 to 250 100 to 150
Power Consumption (w) :150
Power Consumption per meter (W/m) :
Protection Function :Short Circuit Protection, Overload Protection, Overheat Protection
True Wattage Eq (W) :
Voltage Range (v) :
Wattage equivalent (W) :
Watts per metre :
EN :EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
LVD Certified:Yes
New Energy Rating :
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP67
Lowest Operating Temperature (°C) :-40
Maximum Operating Temperature (°C) :60
CE RoHS :Yes
Package Length (mm) :235
Package Width (mm) :95
Package Depth (mm) :50
Package Weight (g) :720
