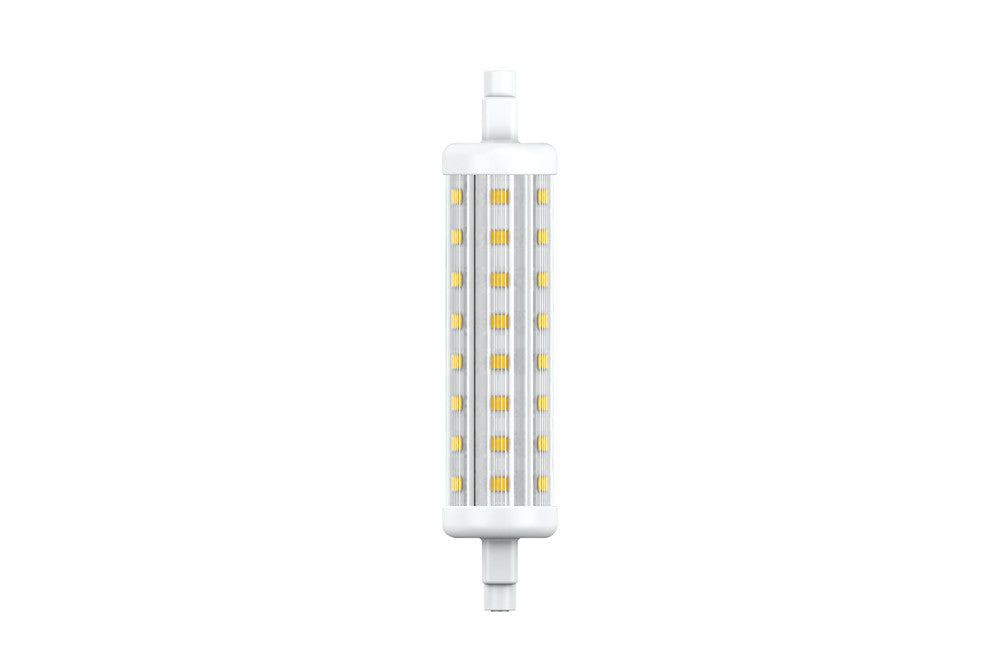

R7S BULB 118MM 850LM 6.5W 4000K NON-DIMM 360 BEAM CLEAR INTEGRAL
Integral LED R7S lamps are ideal for commercial and residential outdoor use in floodlights and in interior uplighter and downlighter wall fittings. Integral LED R7S lamps are designed to retrofit easily into existing R7S halogen lamp fittings.
Cool White850 LumensNon-Dimmable
Barcode :5055788224778
Category :Lamps
Features :
Market Segment :Commercial outdoor (with appropriate outdoor fitting), Residential outdoor (with appropriate outdoor fitting)
Product Body Finish :
Product Type :R7S
Range Name :R7S
Warranty (Years) :2
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :360
Beam Angle (Range) :
Colour Rendering Index (CRI) :80
Colour Temperature :4000K - Cool White
Colour Temperature Name :Cool White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :4000
LED Type :Surface mounted device (SMD)
Lifetime (hours) :15000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :470 to 850 850 to 1500
Luminous efficacy (lm/W) :131
Luminous Flux in Lumens (lm) :850
Sensor / Overide :
Switching Cycles:7500
Amperage (mA) :58
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :Yes
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :5 to 8
Power Consumption (w) :6.5
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240
Wattage equivalent (W) :63
Watts per metre :
EN :EN 61547:2009
LVD Certified:
New Energy Rating :E
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP20
Lowest Operating Temperature (°C) :-20
Maximum Operating Temperature (°C) :40
CE RoHS :Yes
Package Length (mm) :126
Package Width (mm) :48
Package Depth (mm) :48
Package Weight (g) :
