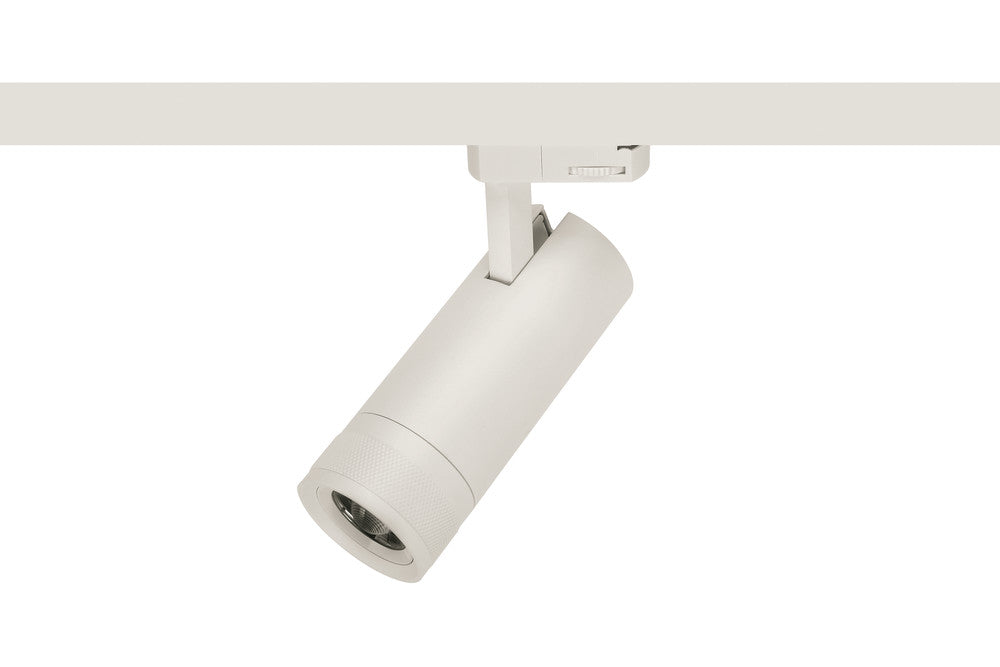

FOCUSPRO 15W WHITE LED SPOT LIGHT NON-DIMMABLE ZOOMABLE BEAM ANGLE 20-55 DEG TRACK MOUNTED 3 CIRCUIT 3000K 164MM CRI90 1050LM 86LM/W 220-240V
Integral’s track spots are designed to fit into Global 3 circuit track such as our Onetrack sold separately. They feature an adjustable zoom beam angle for superb light focus control, 100% aluminium body for a quality finish with impeccable heat dissipation and adjustable rotational and tilt angles for extra flexibility of install.The 3-circuit option means you can turn on and off the spotlights independently from each other on the same length of the track.We welcome enquiries for project customization including Triac, 0-10V and Dali dimmable. App controlled spots can also be provided. Please contact our sales team for more information.
Adjustable beam angle with zoom control90 degree tilt angle355 degree rotational angleCRI90 real colour3 circuit
Base Term :
Bulb Base :
Bulb or Luminaire Shape :Round
Construction :Polycarbonate casing and diffuser
Cut Out Diameter (mm) :
Cut Out Diameter (Range) :
Diameter (mm) :
Globe Finish :
Globe Type :
Length (m) :
Linkable :
Luminaire Fixing :Ceiling, Wall
Material :Polycarbonate
Max Run Length (m) :
Max Strip Width (mm) :
Mounting Type :
Optic :Polycarbonate diffuser
Overall diameter (mm) :250
Overall diameter (Range) :210 to 260
Placement / Application :Indoor, General Lighting
Product Depth (mm) :102
Product Length (mm) :
Product Width (mm) :
Product Weight (g) :500
Spot Type :
Strip Cut Points :
Strip Width (mm):
Beam Angle :20-55
Beam Angle (Range) :40 to 60
Colour Rendering Index (CRI) :90
Colour Temperature :
Colour Temperature Name :Warm White
Compatible Dimmers :
Correlated Colour Temperature (CCT) (K) :3000
LED Type :
Lifetime (hours) :50000
Lighting Method :
Lumens in Emergency mode (lm) :
Lumens per meter (lm/m) :
Lumens Range :850 to 1500
Luminous efficacy (lm/W) :
Luminous Flux in Lumens (lm) :1050
Sensor / Overide :
Switching Cycles:
Amperage (mA) :
Battery Configuration :
Dimming :Non-Dimmable
Driver Included :
Electric Current :AC
Emergency Battery Life (years) :
Emergency Lumens (lm) :
Emergency Type :
Emergency Category :
PIR :
Input Current (A) :
Input Voltage (V) :
Insulation Guard :
Output Current (mA) :
Output Voltage (V) :
Power Consumption (Range) :8 to 15
Power Consumption (w) :15
Power Consumption per meter (W/m) :
Protection Function :
True Wattage Eq (W) :
Voltage Range (v) :220-240
Wattage equivalent (W) :
Watts per metre :
EN :EN-60598
LVD Certified:Yes
New Energy Rating :
IK Rating (Impact Protection) :
IP Rating (Back/Recessed side) :
IP Rating (Ingress Protection) :IP20
Lowest Operating Temperature (°C) :
Maximum Operating Temperature (°C) :
CE RoHS :Yes
Package Length (mm) :105
Package Width (mm) :105
Package Depth (mm) :257
Package Weight (g) :800
